HS Series Miniature Switching Joystick

APEM introduces its HS Series miniature switching joystick measuring only 20 mm above panel.

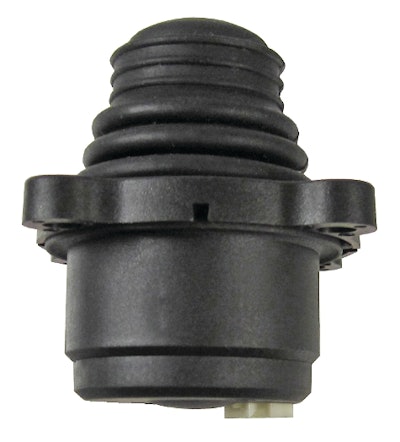

Apem Hsseries 11456743
Logo Apem 10933224

APEM Inc. announces the release of the HS Series miniature switching joystick.

  • Measures roughly only 20 mm above panel
  • Provides two-way, four-way or five-way operation with superior tactile feedback
  • Applications include wireless remote controls, joystick and “gamepad” integration
  • Features up to four micro-switches fitted with either silver of gold plated contacts
  • Gold plated option provides up to 200,000 electrical operations at 10 mA and  30V DC
  • Silver plated option provides up to 100,000 operations at 100 mA and 30V DC
  • Provides two switching contacts when specified with a two-way limiter plate
  • Specifying with a four-way limiter plate provides four switching contacts
  • Electrical connections are provided through a six terminal Molex (501331-0607) connector
  • Optional wire harnesses may be specified at the time of order
  • Available with one of eight handle options including traditional “castle” and “conical” styles, as well as a pushbutton option
  • Features miniature tactile switch protected under an elastomer boot
  • Provides an off-momentary validation feature
  • If configured with a four-way limiter plate it provides five independent MOM-OFF-MOM operations
  • May be specified with a black oxide coated brass threaded D-flat housing, making for simplified drop-in panel installation
  • Mounting accessories for the housing option include a stainless steel lock washer and hex-nut
  • Rear-mount and drop-in mount plastic bezel options are also available
  • All three mounting options provide IP67 and IP69K protection against water, dust and oils, making it suitable for a range of outdoor applications
