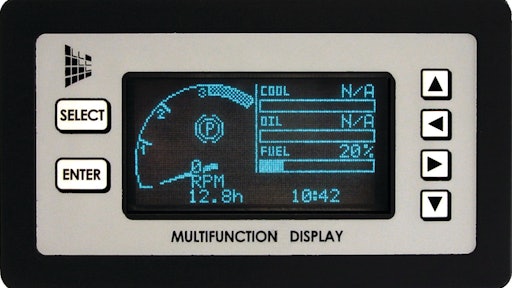

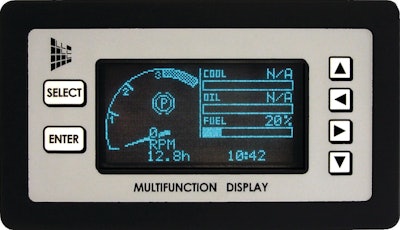

PR3810 Multifunction Display

The PR3810 multifunction display from PRAN Systems works with electronic engines to help operators monitor vehicle performance.

Pr3810 2

PRAN Sytems' multifunction display PR3810 displays all engine and body functions. The module, when connected on the engine’s network, brings all information in a variety of formats.

  • Can be used with all electronic engines
  • Uses CAN bus to display information such as battery voltage, coolant temperature and oil pressure
  • Displays more than 40 messages and warnings from engine's ECM
  • On-screen programming comes standard
  • Standard SAE pictograms for warning are available on request
  • Features four fully protected outputs high-side and eight versatile logic inputs or analog signals
  • Includes adjustable brightness vacuum fluorescent display
  • Offers wide operating voltage of 9 to 32V
  • Includes reverse supply polarity protection (SAE J1455)
  • Operating temperature range of -40 to 85 C
  • Features splashproof enclosure
  • Includes low power mode
  • SAE J1708 and SAE J1939 compatible
