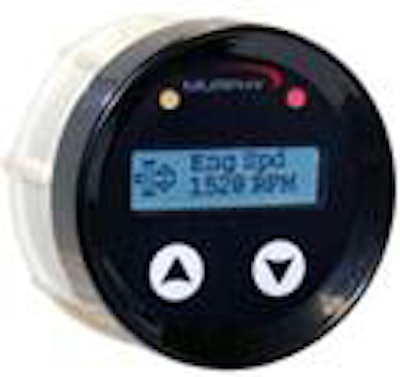

POWERVIEW Model PV25 Display

FW Murphy introduces its latest vehicle display, the POWERVIEW Model PV25, which is well suited for use with Tier 4 and below engines.

Fwmurphy Powerviewmodelpv25dis 10814781
Murphy20logotag Jpg 2012 10716165

FW Murphy announces the POWERVIEW Model PV25 to OEMs looking for a cost-effective, rugged solution for Tier 4/Stage IIIB/IV and below engines.

  • Performs well in rugged environments
  • Displays both engine parameters and diagnostic trouble codes
  • Utilizes SAE J1939 communications
  • Shows 20 key J1939 parameters broadcast from the ECU
  • Provides simple operation using the up and down pushbuttons to scroll through parameters
  • Shows J1939 warning and shut-down conditions with bright LEDs
  • Operators can request and inhibit regeneration of Tier 4/Stage IV engines with universal ISO symbols in addition to showing key parameters like DEF and soot levels
  • Both active DM1 and stored DM2 faults are shown using Suspect Parameter Number (SPN), Failure Mode Indicator (FMI), and Occurrence Count (OC)
  • Offers a replacement to existing hour meters
  • Allows easy instrumenting of mechanical engines with an additional MeCAN module
  • Provices good visibility in direct sunlight
