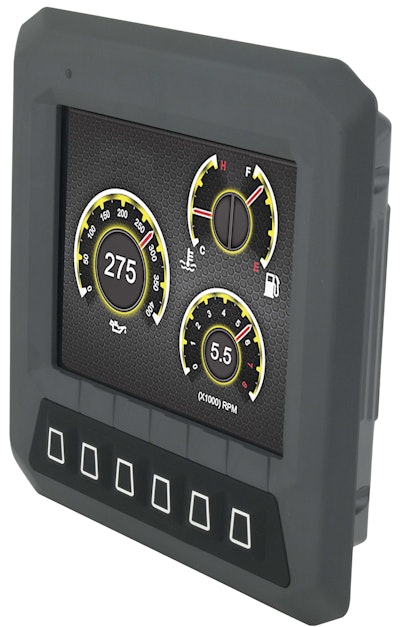

Danfoss DP570 PLUS+1 Mobile Machine Display

Danfoss' DP570 PLUS+1 mobile machine display includes five buttons with tactile feedback for ease of use and comfort.

DP570 Display 570bd7cda8d12
Logotype Cmyk Pms 11172710

The Danfoss DP570 PLUS+1 mobile machine display is designed for smaller-scale applications where buttons are needed.

  • Specifically suited to in-cab and mid-size control panel machine applications including material handling, agriculture and speciality vehicles
  • Features 5.7-in. (14.48 cm) high resolution TFT color display and IP67 rating
  • Temperature range is -20-60 C (-4-140 F)
  • Includes latest technology with integrated light sensors and automated backlight adjustment to provide outstanding brightness and contrast performance, resulting in an easy-to-read screen
  • Operators can easily read information on the screen in a wide array of natural light settings for improved overall operator comfort
  • Fully integrated connectors and silicone keypad provide water and dust protection from all sides
  • Five buttons provide tactile feedback for operators' ease of use and comfort
  • All buttons have white backlit design for low light and night use, and are each individually software controlled
  • Available in two models, with or without video input to best meet customer needs
  • PLUS+1-compliant, allowing for easier programming
  • PLUS+1 GUIDE (Graphical User Integrated Development Environment), which provides function blocks for drag-and-drop editing or with the vector-based screen editor, enables OEMs to easily develop their own software and layout to shortening time to market
  • PLUS+1 GUIDE Vector-Based Screen Editor (VBSE) supports SVG format with an image library available for download providing background, gauges, symbols and button images that can be modified, with symbols and gauges available in both night and day images
  • VBSE supports most standard image file formats including JPEG, GIF, BMP, PNG and TIFF, and offers flexible and scalable graphics, allowing users to resize, rotate, move and link objects for simplified screen design
  • VBSE offers seamless integration into PLUS+1 GUIDE applications so users can take advantage of PLUS+1 GUIDE enhancements that automate repetitive steps and enable porting of applications between projects
