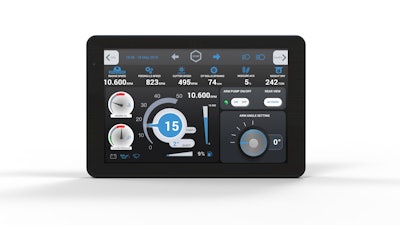

MTA Leonardo Customizable Display

Exhibited at EIMA 2018, the MTA Leonardo is a 12.1 in. TFT touchscreen display which can be customized via software to individual customer needs and applications.

Mta Leonardo
Mta Logo

MTA's Leonardo is an off-the-shelf display whose software can be easily customized by the customer according to the specific needs of the off-highway machines into which it is installed.

  • Can be used as stand-alone device in which it also acts as a dashboard
  • Can also be incorporated in an electronic system that includes other displays or dashboards
  • Software can be customized using Android Studio, a software environment that is aimed at the most expert programmers and allows customers to develop complex, refined graphics
  • Proprietary Android plug-in called Speedy Creator makes programming as user friendly as possible, making available specific functions and graphics to allow quick, simple development
  • Can be programmed by OEMs using MTA Studio, another easy-to-use software tool that is ideal when the application does not require elaborate graphics
  • Features large 12.1 in. (30.5 cm) TFT color touchscreen with resolution of 1280 x 800 pixels
  • Suited for off-highway applications where it is necessary to simultaneously display several different parameters related to the machine and the equipment connected to it
  • Multitouch screen (up to 10 points) with latest generation touch controller ensures reliability and accuracy even when the operator uses gloves
  • Large size, high resolution and high luminous intensity provide high visibility, even with intense direct light
  • Optical bonding treatment completely eliminates air between the display and the screen, thereby minimizing glare
  • Includes anti-glare and anti-fingerprint glass for the screen
  • Highly robust and reliable over time, extremely resistant to vibrations and high temperatures with IP66 degree of protection
  • WiFi and Bluetooth interfaces
  • Inclusion of a speaker with microphone input and audio output connected to a possible external audio amplifier enables hands-free use
