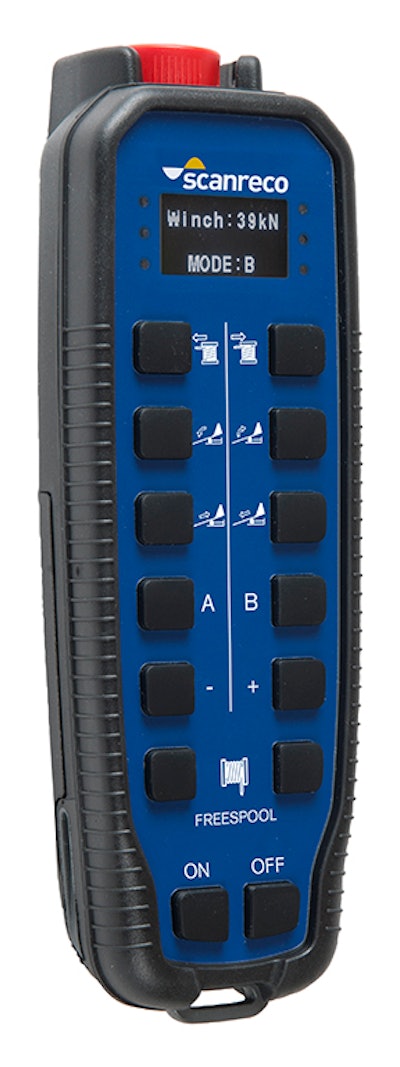

Scanreco Rocket Flex Transmitter

Scanreco's Rocket Flex Transmitter delivers 120 hours of continuous operation before charging.

Scan505 Rocket Flex 300 Dpi

The Scanreco Rocket Flex Transmitter offers OEMs a wide range of digital control functions and operator feedback options.

  • Designed for heavy usage
  • Delivers 120 hours of continuous operation before charging
  • Well suited for mobile applications including: cranes, winches, tailgates, agricultural and forestry machinery, augers, conveyors, and more
  • Offers high degree of flexibility and customization
  • Features 14 one- or two-step pushbuttons and allows for customization of front label by combining symbols and text
  • Buttons can be configured to be momentary, latching or interlocking
  • Each button can be assigned to any receiver output, and to several outputs at once if so desired
  • Shift feature duplicates functionality of each button
  • Optional graphic display and five standard LEDs, which are used for feedback from the receiver, are also programmable
  • Automatic frequency management allows for continuous work without interruptions caused by radio interference from other wireless equipment
  • Transmitter communicates with corresponding receiver using a Scanreco protocol and unique identity code, guaranteeing no other transmitter – from Scanreco or another manufacturer – can unintentionally activate the machine
  • In cases where extended operating range is required, an extra Rocket Flex or Pocket Transmitter can act as a repeater for radio link
  • Includes Stop function in accordance with EN ISO 13849-1 cat. 3, PL d – a legally binding standard for safety-critical components of control systems
  • Frequency band of 2.4 GHz
  • Operating range > 100 m (~330 ft.)
  • Operational temperature range is -25-55 C (-15-130 F)
  • Protection category IP65











Media Contacts

Company: Jason Looman, President | 855.685.0732 | jason.looman@scanreco.com

Agency: Julie Eleftheriou, Longren & Parks | 952.913.3065 | julie@longrenparks.com



About Scanreco

Scanreco is the leading supplier of professional radio remote control systems to international crane and machinery manufacturers. Since its founding in Sweden in 1984, Scanreco has been developing and supplying safe, reliable radio remote control systems to OEMs around the world. The company’s Never-Stop Technology™ is at the heart of all its products. Scanreco transmitters and receivers are designed for heavy-duty usage, built to withstand vibration, extreme temperatures, and function reliably for years with little to no maintenance. For more information, call 855.685.0732 or visit www.scanreco.com
