HED CL 613/614 Family of Sealed CAN Keypads

The CL 613/614 family of sealed CAN keypads from HED Inc. are sealed to IP67 for use in harsh off-highway applications.

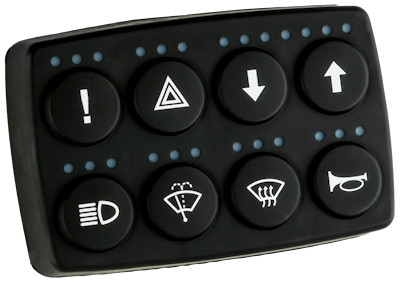

CL 614 2x4 Keypad 56fe98827447a

HED Inc. has released the CL 613/614 family of sealed CAN keypads.

  • Features IP67 rating
  • Well suited for harsh environment of off-highway applications, both inside and outside the cab.
  • Includes rubber membrane pushbuttons
  • Utilizes metal actuation domes for long life exceeding 2 million actuations
  • Offered in two standard form factors, 2x4 and 2x8
  • Variety of LED colors for each button or indicator are available
  • LEDs are dimmable, both as indicators and icon backlights
  • Icons are laser etched and customizable to customer specification, or available off-the-shelf as circular white icons
  • Provides advantage of one onboard input (digital STB) and one sinking output
  • Communicate seamlessly through a single CAN port via J1939, CANOpen or HED’s CANLink protocol
  • Buttons can be programmed to flash codes for simple troubleshooting and warning indications
