Hall-Effect Contactless Sensing Analog Rocker Switches

C&K Components develops two Hall-effect contactless sensing analog rocker switches.

March 19, 2010

Ar5ar3ima 10058790

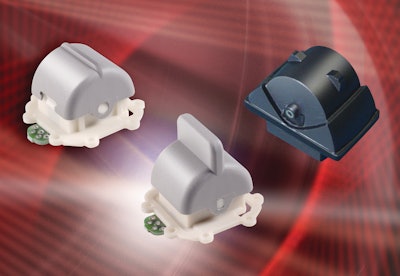

C&K Components has developed two Hall-effect contactless sensing analog rocker switches, the AR3 and AR5 analog rockers.

Durable
Life of more than two million actuations
Short circuit protection
Integrated temperature compensation
RoHS compliant and compatible
AR5 rockers allow for customized fingertip style actuators, different lengths and color combinations; optional detent/over travel life of more than 200,000 cycles; optional latching life of more than 100,000 cycles; operating force range of 4N to 6N; with a maximum vertical load of 30N. Maximum output current is 1mA, maximum rocker deflection angle is ±40°, and the switch is sealed to IP65 specifications. Operating temperature ranges from -40°C to +85°C.
AR3 rocker switches feature an operating force from 4N to 6N, with a maximum vertical load of 30N; max. output current is 1mA; max. rocker deflection angle is ±30 degrees; sealed to IP65 specifications from above when mounted; operating temperature ranges from -35 C to 70 C
