eSM Multiplexed Rocker Switch Units

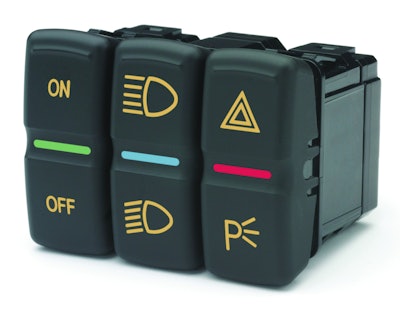

Eaton's eSM multiplex rocker switch provides flexibility and the ability to communicate with up to seven expansion modules.

Esm E32 10271455
Logo Eaton 10933210

Diversified industrial manufacturer Eaton Corporation has announced the availability of its high-performance electronic multiplex switch module, which provides increased flexibility and sealing ratings for buses, recreational, emergency, street sweepers, mobile hydraulics and other specialty vehicles by providing users with a comprehensive and simple dash-panel switch solution.

  • Minimizes complexity and cost of harness wires with a digital semiconductor
  • Reduces overall weight of vehicle by using less hardware and wiring
  • Enables operator to view, select, and input equipment and trip data using convenient dash-panel switch modules in a master-expansion configuration
  • Utilizes master module and up to seven expansion modules
  • Features LIN SubBus to connect with expansion modules
  • Allows customers to reprogram in the field
  • Operates on 12V or 24V battery power-line
  • Minimizes panel space by requiring only one cut out
  • Provides flexibility to use a broad spectrum of graphics and various color frames and rockers,
  • Includes LED backlit graphics as well as top, center, and bottom LED lighting
  • Enables incorporation of customizable graphics or industry-standard laser etching
  • Offers unlimited circuit and lighting flexibility with J1939 CANbus controllable dimming, mode, scaling and flashing options
  • Protects against dust and moisture
  • Available with IP53 and IP42 rated enclosures respectively
  • Operates in temperature range from -40 C to 85 C
