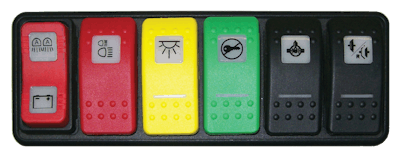

PR3610 SwitchPlex IV Module

The SwitchPlex IV module from PRAN Systems supports SAE J1939 CAN and SAE J1708 protocols.

36101 10682359

PRAN Systems' PR 3610 SwitchPlex IV module was designed to replace wire and switches that are normally installed as separate units.

  • Supports SAE J1939 CAN or SAE J1708 communication protocols
  • Reprogrammable by serial communication link with VisionPlex
  • Displays information on most popular engines like oil pressure, high temperature and fluid levels
  • Can display Diagnostic Trouble shooting Codes (DTC)
  • Design is in accordance with SAE-J1455
  • Features operating supply of 9 to 32V
  • Includes reverse polarity protection and load dump protection
  • Operating temperature range of -40 to 80 C
  • Offers power for external sensors (1.3A)
  • Six front positions available for switches and/or telltales
  • Each switch has its own activity LED and an intensity controlled backlight (VDIM) to illuminate the function, software controlled
