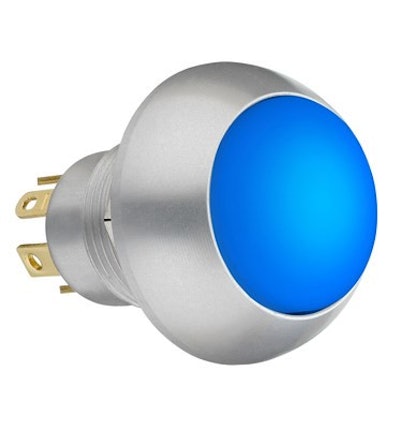

OTTO LP3-S and LP3S-V Shorter Behind-Panel Momentary Action Pushbutton Switches

The LP3-S and LP3S-V pushbutton switches are suited for space-constrained applications and available in six standard LED color choices.

LP3S model
LP3S model
OTTO exexcel 3x3 578d797091bcc

OTTO announces the release of its LP3S and LP3S-V shorter behind-panel versions of the company's classic LP3 and LP3-V illuminated, momentary action switches.

  • Good choice when space is limited
  • Provides lighted position indication for demanding applications where reliability is crucial¬†¬†
  • Watertight seal option to IP68S and IP69K
  • Six standard LED color choices
  • Logic level option available

LP3S

  • Offers tall and dome style button choices, optional printed legends
  • For use in grips and other applications with limited space in off-highway, material handling, industrial controls, marine and other demanding commercial applications.

LP3S-V

  • Vandal resistant
  • Offers flat and domed actuator bezel shapes and variety of button types
  • Features both aluminum and stainless steel cases
  • Provides positive tactile feedback
  • Suited for marine, off-highway, industrial control and panel applications that require secure, rugged, sealed, illuminated switch
