OTTO HTWS Subminiature Hall Effect Proportional Output Thumbwheel Switch

OTTO's HTWS thumbwheel switch features a spring return-to-center, single axis design.

Otto
OTTO

OTTO announces the release of its HTWS subminiature Hall effect proportional output thumbwheel switch.

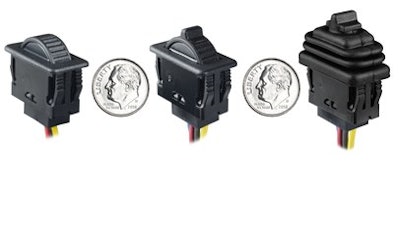

  • Available with knurled wheel, paddle wheel, or paddle wheel with seal boot for added ingress protection
  • Smaller than OTTO's HTW and HTWM series
  • Spring return-to-center, single axis design
  • Provides linear change in voltage output corresponding to actuator movement in either direction from center
  • Available with eight output options, including increasing and decreasing voltage output from center position to full travel position and single or dual (redundant) outputs
  • Snaps into 0.895 x 0.420 in. (22.7 x 10.7 mm) panel opening
  • Electronics sealed to IP68S
  • Optional sealing boot is offered for added protection against dust, sand, and water ingress
  • Offers three million cycle rotational life, operate force options and excellent EMI/RFI immunity
  • Available with flying wire leads or pin connection
Fill out the form below to request more information about OTTO HTWS Subminiature Hall Effect Proportional Output Thumbwheel Switch
