Before the advent of any means of precisely controlling a grader’s blade, pull and motor graders were generally unable to put a crowned, finished surface on a dirt or gravel road. This work was done by towed road planers, shapers and finishers that lightly graded the surface with skids or blades that could be set to the desired profile. The blades were usually longer and not as tall as those on a grader, and came in several configurations.
The largest of these machines could work the entire width of a two-lane road in one pass, carrying material up from the shoulders and spreading it at the crown, and the blades could be swung into the width of the frame for transport. One machine, built by Russell Grader Company, used a single extra-wide blade whose end and center sections could be set to the desired profile, and in 1916 Western Wheeled Scraper marketed a planer that could be converted into a grader for large-scale patrol work.
Both the road planer nomenclature and the unwieldy multi-blade machines described above were apparently phased out in the 1920s, but smaller, one-lane road shapers were produced as late as the 1950s by the Gledhill Road Machinery Company. When it was introduced in the early 1930s, the Gledhill road shaper was notable for having one of the earliest true hydraulic control systems to be used on a piece of construction equipment. Towed behind a truck, it applied a vee-shaped framework of skids to the road surface, and the shaper’s operator set the skids to the road’s profile by means of a system of cranks and a hand-operated hydraulic pump.

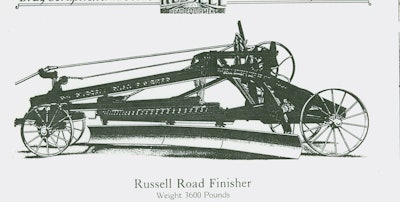

Russell Grader Manufacturing Company catalog, n. d., HCEA Archives
