Trunnion/Stubby

The Trunnion/Stubby Axle is a short track axle designed for use with high-capacity, low-bed trailers, specialty trailers, construction machinery, and special industrial applications

June 29, 2010
Ingersoll Axles (IMT Corp.)

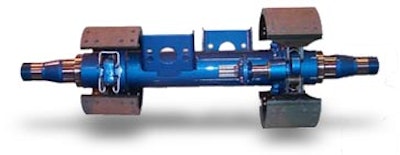

Axle Image Trunnion
Logo Rgb

Available from 28 inches, it can suit narrow applications, and with several spindle options, it can adapt to a variety of customer needs. With an assortment of weld-on and bolt-on spiders, numerous FMVSS121 and CMVSS121 certified linings and brake varieties of 12

Request More Information
Fill out the form below to request more information about Trunnion/Stubby
