Meritor ProTec Series 50 Beam Axles

Meritor's ProTec Series 50 range of beam axles are available in multiple configurations and include an anti-lock braking system.

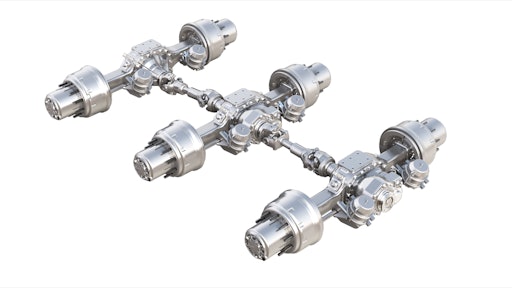

P600 Tridem 1880 1
Logo Meritor 10259657

Meritor Inc. announces the introduction of the ProTec Series 50 range of beam axles for military-specific applications. The axles will be available in the fall of 2018.

  • Features new beam design
  • Utilizes theater-proven technologies
  • Shares many common components and technologies with existing Meritor products
  • Meets Department of Defense’s elevated technology readiness levels
  • Available in multiple configurations
  • Offers gross axle weight (GAWR) of 60,000 lbs. (27,215.5 kg) for tandem and 90,000 lbs. (40,823.3 kg) for tridem
  • Broad overall ratio selection ranging from 3.46:1 to 24.8:1 to fit unique and demanding applications
  • Driver-controlled differential lock or inter-axle differential is standard for all carriers and inter-axles to maximize traction
  • Anti-lock braking system capability delivers optimum safety and performance
  • Non-vented drum brake protects braking system while operating in adverse conditions
  • Central tire inflation system for planetary wheel-ends is optional
