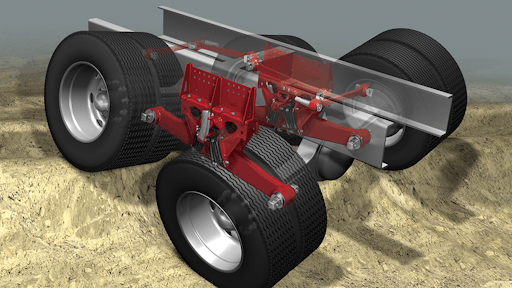

Hendrickson HAULMAAX EX Rubber Suspension

The HAULMAAX EX suspension is optimized to provide an increased site rating, expanded capacity ranges, and improved durability.

Haulmaax Ex
Hendrickson International

Hendrickson Truck Commercial Vehicle Systems announces the release of its next-generation, heavy-duty rubber suspension HAULMAAX EX.

  • Delivers improved performance and durability
  • Optimized to provide increased site rating, expanded capacity ranges, and improved durability
  • Features 46,000 lb. (20,865.2 kg) capacity and up to 70,000 lb. (31,751.5 kg) site rating
  • For vocational applications where durability and performance are essential
  • Offers ideal balance of unloaded ride quality and loaded stability
  • Lightweight which allows for increased payload of vehicle
  • Provides versatility for operating both on-and off-highway
  • Equalizing beam distributes load equally between both axles in off-road and uneven terrain conditions
  • Eliminates fixed center bushing pivot points to reduce wheel hop
  • Pairing with Hendrickson TRAAX RODs enhances stability and increases articulation for improved on- and off-highway operation
