Heavy-Duty Rubber Suspension

Designed for trucks operating on- and off-highway, the HAULMAAX EX suspension features an equalizing beam that distributes the load equally between both axles in off-road and uneven terrain conditions.

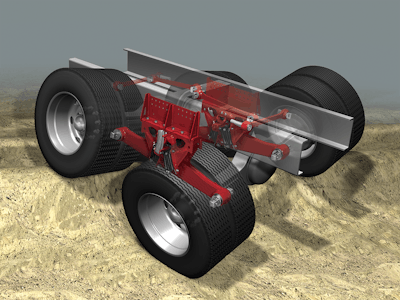

Haulmaax Ex Traaxrods Cross Articulation 04 21 2020 1
Hendrickson Trailer Suspension

Hendrickson Truck Commercial Vehicle Systems partnered with Mack Trucks to offer the next generation HAULMAAX EX heavy-duty rubber suspension. The Mack TerraPro and LR cab-over vehicles are now available for purchase with the HAULMAAX EX suspension at authorized Mack dealers.

HAULMAAX EX supports trucks that operate on- and off-highway. The suspension’s equalizing beam distributes the load equally between both axles in off-road and uneven terrain conditions and provides 17 inches of diagonal articulation. The design eliminates fixed center bushing pivot points to reduce wheel hop. An integrated jounce stop provides overload protection to maximize the life of the progressive load springs and bolster springs. The tire clearance was increased on the HAULMAAX EX to include packages with 315 tires and 9-inch steel wheels, while continuing to meet the SAE standard for tire chain clearance.
