Voith H Couplings

Voith exhibited its H couplings which are temperature resistant and versatile for use in several applications at bauma 2019.

April 22, 2019

Voith GmbH & Co. KGaA

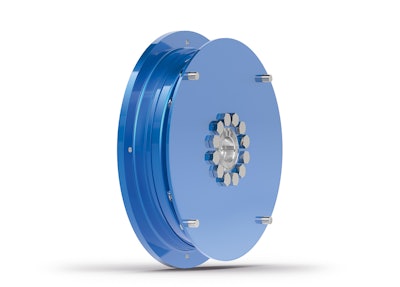

Voith H Coupling

Voith presents its H couplings for construction vehicles.

Temperature resistant and versatile
Features two damping systems working in parallel: a spring-mass system and a viscous-hydraulic damping system
Compact design
Dampens torsional vibrations and torque shocks in driveline
Increases operational stability and service life
Radially arranged steel compression springs transfer torque from engine to driven components
Additional damping grease generates high damping values
Complete coupling operates virtually wear-free, leading to very long uptimes
Helps keep service and maintenance costs at low levels
Can be used in main drives for wheel loaders, dump trucks and mobile cranes, among other applications
