JW Winco GN 1050 Quick Release Coupling

The GN 1050 quick release coupling is made with high quality materials which enable axial connection loads up to 7,868 lbf.

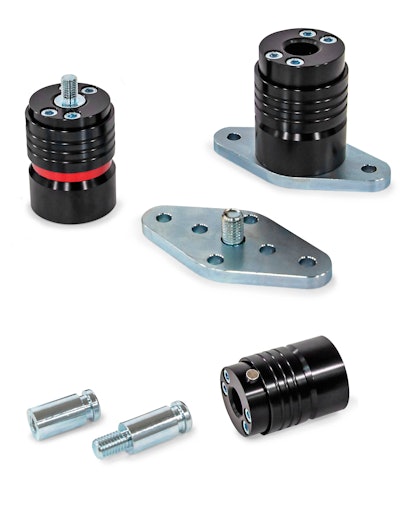

2021 11 Quick Release Couplings
JW Winco, Inc.
Winco Logo 2016 4c Large

JW Winco has introduced the GN 1050 quick release coupling which enables components to be quickly and securely connected to a machine or device with just a click.

  • Consists of two elements, the coupling GN 1050 and the tailored threaded stud GN 1050.1
  • Safety locking button protects the coupling from being accidentally opened
  • Sleeve can be moved axially to unlock a stud inserted into the notch on the inside when pressing the button
  • Red ring becomes visible on outside to indicate the unlocked state
  • Couplings and individually purchased studs can be fastened by a threaded stud (type A) or an internal thread (type I)
  • Flange GN 1050.2 evenly distributes force to allow for further attachment options
  • Available in two different designs
  • Version F has a fixed bearing for precisely positioned attachment
  • Version L has a loose bearing permitting a certain degree of tolerance between the fastening points
  • Comes standard in black anodized aluminum and possesses a locking mechanism made of zinc plated steel
  • High-quality materials and surface finishes effectively protect against corrosion and wear and sustains axial connection loads up to 7,868 lbf (35 kN)
  • Individual combinations of materials and colors can be produced in accordance with customer’s wishes
