GN 139.14 Series Hinges with Electrical Switching Function

The GN 139.1 Series Hinges with Electrical Switching Function from J.W. Winco are designed for use on monitoring doors and covers of machines and equipment.

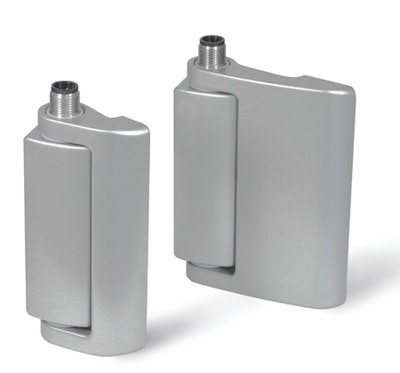

Jwwinco Gn 1391hingeswithelect 11187401
Winco Logo 2016 4c Large

J.W. Winco Inc. announces it now offers GN 139.1 Series Hinges with Electrical Switching Function, with Safety Switch, in metric sizes.

  • RoHS compliant
  • For use on monitoring doors and covers of machines and equipment
  • Opening door activates switch contacts, causing interruption in a protective circuit via broken contact (NC) and simultaneously time signals door opening by closing a normally open contact element (NO)
  • Contact blocks are fitted with positive opening slow-action contacts, i.e. they are separated when activated and have no hysteresis
  • Angle at which switching points are reached is adjustable
  • Compact and easy-to-mount
  • Mounting from back makes hinge particularly tamper proof
  • Body is zinc die-cast, with silver metallic powder coated finish
  • Hinge pin is stainless steel
  • Offered in types with connector plug on top, bottom, or on back with 200 mm cable
  • All types are available with narrow hinge wing or broad hinge wing
