Thomson Electrak HD Linear Actuators

Thomson's Electrak HD electric linear actuators enable electronic control of hydraulic applications and are rated to IP67K for use in heavy-duty applications.

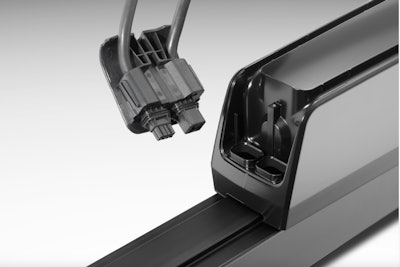

Thomson ElectrakHDLinearActuator 56bcf3112a9e8
Logo 10933216

Thomson Industries Inc. has released the Electrak HD electric linear actuators.

  • Enables design engineers to convert wider range of hydraulic applications to electric and substantially improve application control
  • Offers new level of electronic functionality with introduction of Electrak Modular Control System
  • Handles bidirectional loads up to 10 kN (2,250 lbs.) with stroke lengths up to 1,000 mm (39 in.)
  • Performs in heavy-duty applications such as mobile-off-highway vehicles, utility vehicles, emergency and rescue vehicles and construction site equipment and logistic systems
  • Provides simpler method of control and communication, reducing operating costs and space requirements for simplified setup and installation
  • Optional out-of-the-box SAE-J1939 CANbus communication enables enhanced controlability and diagnostics on machines compatible with the SAE-J1939 CANbus protocol
  • Low level switching and end of stroke indication output options, and choice of analog or digital position feedback, provide additional versatility
  • Utilizes high quality ball screw assembly, reducing current draw by up to 20% over previous models
  • Features wide range of speed options, up to 75 mm/s (3 in./sec) on some models
  • Meets IP69K, IP67 (static) and IP66 (static/dynamic) ratings
  • Operates in temperatures ranging from -40-85 C (-40-185 F)
  • Withstands salt spray for 200 hours
  • CE, RoHS and REACH (EU) certified
  • Comes standard with manual override, anti-rotation features, integral thermal overload protection, load lock in case of nut overload failure, high quality ball screw, and flexible front and rear clevis options
  • Retracted minimum length for a given stroke is the same, no matter what control option is in use
