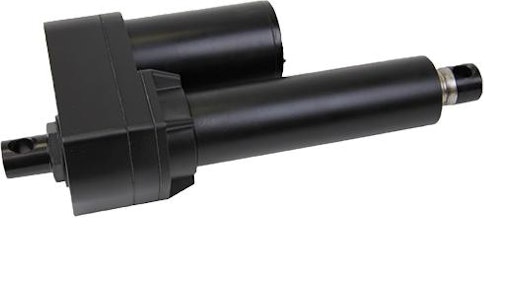

Concentric Glideforce GF17 Series Linear Actuators

Concentric's Glideforce GF17 linear actuators are available in seven stroke lengths from 4-24 in.

December 20, 2019

Concentric International (formerly Iowa Export-Import)

Concentric Glideforce Gf17 Linear Actuator Series

Concentric International introduces the GF17 series high-performance linear actuators which deliver more speed at the same power load or more power at the same speed setting.

Delivers exceptional push/pull force to highly precise and controlled applications
Offers powerful performance in space- and weight-saving applications
Suited for many industrial, agricultural, automotive, and off-highway applications
Available in seven stroke lengths from 4-24 in. (101.6-609.6 mm) with speeds ranging from 0.34-1.65 in. per second (8.6-41.9 mm)
Body is 304 stainless steel with an aluminum gearbox housing
Input Voltage of 12V DC, 24V DC, 48V DC
Standard gear ratio of 10:1 [5:1, 20:1, 30:1, 40:1 ratios available]
Dynamic load capability 1,461 lbs./662.7 kg (at 20:1 gear ratio)
Maximum static load of 3,057 lbs. [13,600 Newtons]
Ball screw drive
IP ratings of IP65, IP69K
