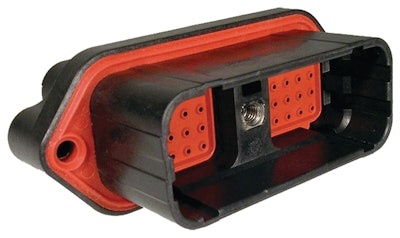

DRC22-40PA to the Deutsch Industrial DRC product family

January 10, 2010

Deutsch Industrial Connectors

Drc2240patothedeutschindustrialdrcproductfamily 10058663

Deutsch Industrial releases the DRC22-40PA in the DRC product family. DRC series connectors are high density pin count rectangular connectors specifically designed for environments where moisture, dirt and rough terrain can contaminate or damage electrical connections.

Accepts 40 size 20 contacts rated at 7.5 amps each
Thermoplastic body includes an integral flange for environmentally sealed bulkhead mounting
Seals, grommets withstand high engine and transmission temperatures
Shock, vibration resistant
