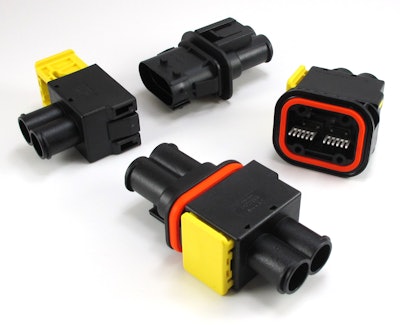

High-Power AMP MCP 9.5 Two Position Connectors

A rugged, environmentally sealed connector solution for high amperage applications

Te Amp Mcp 9 5 1436x1167
Te Logo

TE Connectivity’s (TE) high-power AMP MCP 9.5 two position connectors are designed for harsh environment wire-to-wire and wire-to-circuit board connections.

  • Designed to withstand the extreme conditions of the trucking, agricultural, mining, construction, and marine industries
  • Utilize TE’s field-proven AMP MCP 9.5 contacts
  • Current rating of 78 amps for 10 mm² wire
  • Constructed of heavy-duty thermoplastic
  • Withstand severe vibration and mechanical shock
  • IP67 and IP69K rated; protect connections from dust, dirt, and moisture
  • Long-term operating temperature range of -30-100 C
  • Integrated secondary lock that confirms contact alignment and retention; a slide lock is used for easy connector mating
  • Several mounting options are available, including inline, flange, sealed flange, and PCB mount
  • No tools required for mounting; connectors feature a clip-in mounting feature
