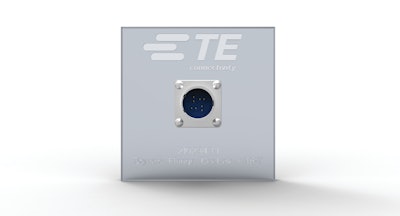

CeeLok FAS-T Connector with Square Flange Receptacle Shell

TE Connectivity's CeeLok FAS-T connector is now available with square flange receptacle shells for wire-applied and printed-circuit-board-applied applications.

Te Ceelok Fas T Square Flange 11272777
Te Connectivity Logo 10933218

TE Connectivity (TE) announces the CeeLok FAS-T connector is now available in square flange receptacle shell versions for both wire-applied and printed-circuit-board-applied applications.

  • Meets 10 Gigabit Ethernet speeds, with ample headroom for even the most stringent link budgets
  • Achieves outstanding signal integrity due to patented T-shaped pin pattern that provides noise cancellation and decoupling to minimize cross-talk
  • Provides optimum performance in some of the harshest environments in military, commercial aerospace and marine/offshore applications
  • Square flange receptacle measures just 0.913 in. on each side
  • Offers high-speed signal transmission in environments where high vibrations may preclude the use of a jam nut style shell
  • Provides easy to terminate, high-speed/bandwidth interface
  • Meets size and weight reduction needs while satisfying ever-increasing performance needs
  • Available in electroless nickel or low reflectivity black zinc nickel plating
  • Range of lanyard-attached, sealed, EMI-resistant protective caps for use with both plug and receptacle connectors are available
  • Protective caps have been designed to pass IP67 and are available with electroless nickel or low-reflectivity black zinc nickel plating
  • Meets high-speed signal requirements for both cat 5e and cat 6a cabling and is a true 100 Ohm impedance connector compatible with various other high-speed protocols
  • Features crimp-snap contacts that enable easy termination and field repairability
  • Backshell provides 360-degree shielding and drives down weight and cost, while significantly improving overall system performance
