Allied Motion Technologies HeiMotion Premium Brushless AC Servo Motors

Allied Motion Technologies' HeiMotion Premium brushless AC servo motors feature compressed winding technology for a compact size and reduced production costs.

June 5, 2017
Allied Motion Technologies Inc.

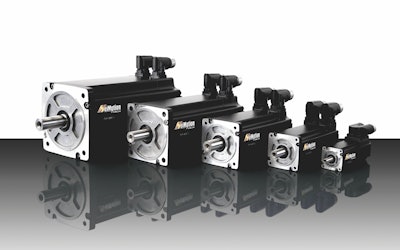

Allied501 Hei Motion Premium Motor 300 Dpi 4x6 593562679a8c1

Allied Motion Technologies introduces the HeiMotion Premium (HMP) brushless AC servo motor family.

  • Available in five metric frame sizes with rated torque from 0.12 up to 14.4 Nm, and continuous shaft power from 50 W to 3.75 kW
  • Offers highly accurate torque ratings, energy efficiency and extraordinary durability (20,000+ hour life span)
  • Compressed winding technology allows for compact size, as well as lower production costs compared to competitive motors
  • Highly configurable in thousands of combinations to fit virtually any application
  • Engineered for use in autonomous vehicles, robots and similar high performance applications
  • Standard flange sizes are 40, 60, 80, 100 and 130 mm ( 1.57, 2.36, 3.15, 3.94 and 5.12 in.)
  • Top speed ranges from 2,000-9,000 rpm
  • Holding torque range of 0.18-18.5 Nm
  • Winding voltage choices range from 48-560 V
  • Includes optimized inertia and extremely low cogging torque
  • Optional features include standard resolver or encoder (including single cable HIPERFACE - DSL interface), holding brake, and connector choices
