Sensata BEI Kimco Model LAT22-18 Motor

Sensata's BEI Kimco model LAT22-18 motor features a direct drive design, eliminating the need for gear boxes or mechanical linkages.

June 27, 2017

Sensata Technologies, Inc.

Sensata Lat Lr 59529bbbe2efe

Sensata 10915639

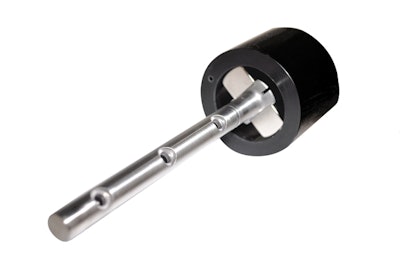

Sensata Technologies announces the release of the Limited Angle Torque (LAT) Motor, BEI Kimco model LAT22-18, for motorized valve control.

Direct drive design
Can be integrated into valve assembly for thermostat control as well as fuel metering, air intake shut off, fuel shut off, or air start control applications
Measures 2.2 in. (5.59 cm) in diameter and 1.8 in. (4.58 cm) long
Features coil assembly that is completely encapsulated to withstand harsh chemical environments
Coil assembly also includes threaded mounting holes for easy installation into valve assembly
Desired size and weight requirements were achieved by attaching permanent magnets directly to butterfly valve shaft
Offers torque capabilities greater than 50 oz.-in. over excursion angle of 90 degrees
Operating temperature ranges from ambient to 257 F (125 C)
Eliminates need for gear boxes or other mechanical linkages that can break and wear, offering higher reliability and less maintenance
Single phase technology ensures simple control and installation
Operates smoothly with zero cogging
