Allied Motion KinetiMax 42 EB Brushless DC Motor with Integrated Drive

Allied Motion's KinetiMax 42 EB Brushless DC motor with integrated drive features an integrated speed control loop with speed set input to adjust motor speed from 150-5,000 rpm.

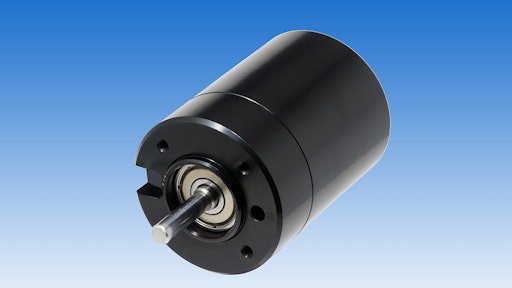

All515 Kineti Max 42 Eb 300 Dpi 4x6

Allied Motion Technologies introduces the KinetiMax 42 EB, a 42-mm (1.7-in.) diameter outer rotor, brushless DC motor with an integrated drive.

  • Extremely compact
  • Robust bearing system capable of handling high side loads
  • Minimum operating life of 20,000 hours
  • Integrated speed control loop with speed set input adjusts motor speed from 150-5,000 rpm
  • External rotor and iron-core stator minimize cogging and maximize output torque
  • Higher inertia of outer rotor design enables smoother running motor even at low speed
  • Equipped as standard with thermal overload protection with automatic recovery, and reverse supply voltage protection
  • For applications including smaller capacity pumps, fans and blowers, scanners, and similar applications that require smooth fixed or variable speed control
  • Features 70 mNm rated torque and 31 W output at 4,300 rpm
  • Six-wire version with tachometer output (18 pulses per rev) for speed monitoring, speed input and direction input
  • Choice of 12 or 24V DC winding
  • IP54-rated protection
  • Low EMI (complies with EN55014-1/2, 61000-6-1/3)
  • Options include customized shaft, mounting flange, leads and connector configurations, and special winding voltage rating
