LORD Sensing M-Series Inertial Sensors

The MV5-AR and ML5-AR sensors provide inclination, pitch, roll and tilt support as well as acceleration and angular rate data.

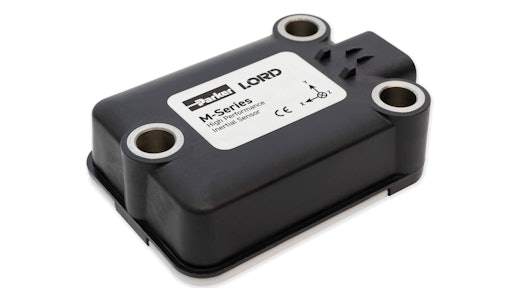

Img 3308 Generic Label White Bg
Parker Lord Logo

Parker LORD MicroStrain Sensing Systems' M-Series (MV5-AR and ML5-AR) sensors are vertical reference unit (VRU) and inertial measurement unit (IMU) sensors which deliver precision navigation measurement.

  • Provides inclination, pitch, roll and tilt support as well as acceleration and angular rate data
  • Offers industrial-grade, ruggedized, and economy packaging that delivers high-performance at low cost
  • MV5 and ML5 are interchangeable, allowing for quick adjustments to determine the best performance level without system re-design
  • Electronic mounting transfer enables limitless and easy user-settable options
  • Features compact size, wide 4.5-36V power range, and IP68/ IP69K rating
  • Includes CAN J1939 or CANopen communications protocol
  • Full accuracy over the entire operational temperature range of -40-85 C (-40-185 F)
  • Utilizes AutoAdaptive Extended Kalman Filter (EKF) to remove errors associated with vibration, sudden linear motions, and quake, resulting in a true reading of inclination under all conditions
  • Optimized for size and weight in off-highway applications such as construction, agricultural and mining, as well as unmanned ground vehicles
