ACEINNA OpenIMU330 Inertial Measurement Unit

ACEINNA's OpenIMU330 helps developers create guidance and navigation systems for various types of autonomous vehicles, including construction and agricultural machinery.

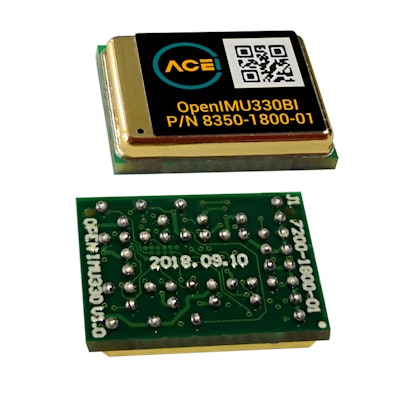

330 Ds Photo Final Small
Aceinna Basic Logo June 2018

ACEINNA announces the release of its ACEINNA OpenIMU330B, a MEMS based, small form factor high-performance 6-DOF inertial measurement unit.

  • Enables autonomous vehicles to accurately stay on track during turns and complicated maneuvers
  • Measures only 11 x 15 x 3 mm (0.43 x 0.59 x 0.12 in.)
  • For use in automotive ADAS and autonomous systems as well as for electronic stability control and Lane Keep Assist functions
  • Triple-redundant architecture consists of three independent, 3-Axis Accelerometer and 3-Axis Gyros for accuracy and reliability
  • Embedded triple-redundant sensor array enables use of ACEINNA’s proprietary voting scheme to utilize only valid sensor data
  • Any defective sensor output or errant dataset can be ignored or de-rated in importance
  • Architecture ensures highest possible quality level and simultaneously improves performance
  • Bias Instability and Angular Random Walk of rate sensors are 2o/hr and 0.2 o/√hr
  • Powered by ARM M4 CPU with Floating Point Unit
  • Runs OpenIMU open-source stack that includes optimized full-state Kalman Filter for Attitude and GPS-Aided Position-Velocity-Time (PVT) measurement
  • Includes triple redundant, 3-axis MEMS angular rate sensor, triple redundant, high-performance 3-axis MEMS Accelerometer, Open Source Tool Chain and Custom Algorithms
  • Features ARM M4 CPU and built in 16-State Open Source Extended State Kalman Filter
  • Automotive Grade ASIL-B Version, SPI and UART interfaces also included
  • Wide temperature range of -40-85 C (-40-185 F)
  • Embedded navigation applications can be quickly developed on PC, MAC, and Ubuntu and deployed to run on OpenIMU hardware
