LORD 3DM-CV5 Industrial-Grade Inertial Sensors

The LORD 3DM-CV5 inertial sensors are fully temperature compensated and provide direct measurement of acceleration and angular rate.

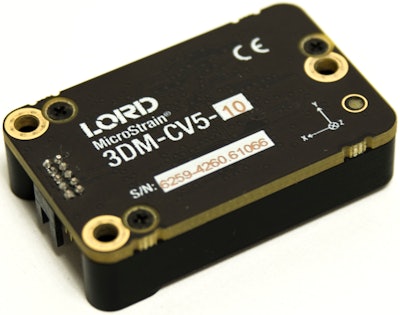

Cv5 10 Perspective 58fe26ad8ec5a
Lord Logo Red4 C

LORD Sensing MicroStrain has introduced the 3DM-CV5 family of low-cost, industrial-grade inertial sensors: the CV5-10 IMU, CV5-15 VRU, and CV5-25 AHRS.

  • Applications include vehicle health and usage monitoring, precision agriculture, platform stabilization and artificial horizon
  • Includes direct measurement of acceleration and angular rate
  • Employs LORD Sensing’s Micro-Electro-Mechanical Systems (MEMS) which are miniaturized mechanical and electro-mechanical elements made using techniques of microfabrication
  • Provides accurate measurements in small and lightweight package
  • Board-level OEM design with precision mounting alignment features for direct PCB mount or chassis mount with ribbon cable
  • Low-noise accelerometer standard measurement range of ±8 g and optional ±2, ±4, ±20, and ±40 g
  • Gyroscope’s standard measurement range is ±500 degrees per second or an optional ±250 and ±1,000 degrees per second
  • Fully temperature compensated, calibrated over operating temperatures, and mathematically-aligned to an orthogonal coordinate system for highly accurate outputs
  • Offers easy integration with SensorConnect software which can be used for sensor configuration, live data monitoring, and data recording
  • Features LORD Sensing’s MIP Data Communications Protocol, making it available for embedded development and easy OEM integration
  • Plug-and-play design for easy integrate directly into wide variety of applications
  • Standardized footprint compatible with previous (GX3-OEM) and future OEM sensors
  • IMU, VR, and AHRS available
  • VR and AHRS have Auto Adaptive EKF for high accuracy in dynamic applications
  • AHRS has Auto mag calibration capability
  • Serial communication: IMU: TTL UART up to 921600 BAUD.
  • Power requirement of 5V DC
