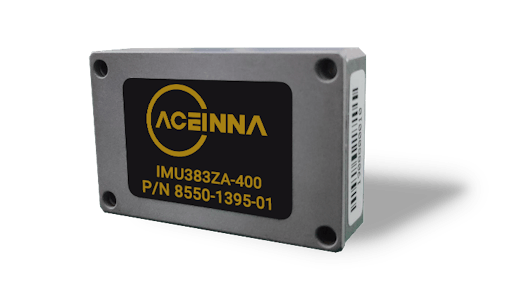

ACEINNA IMU383ZA IMU Sensor

ACEINNA's IMU383ZA features triple-redundant sensor architecture consisting of three independent, 3-Axis Accelerometer and 3-Axis Gyros.

April 28, 2020
ACEINNA Inc.

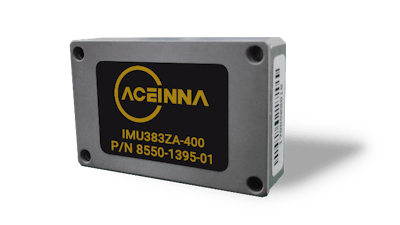

Imu383 Side Png
Aceinna Basic Logo June 2018

ACEINNA announces high volume availability of the its ACEINNA IMU383ZA.

  • Factory-calibrated over -40-85 C (-40-185 F) industrial temperature range
  • Provides consistent performance through extreme operating environments for a wide variety of applications including ADAS (advanced driver assistance systems), autonomous systems, drones, robotics, agricultural, construction, and other industrial machines
  • Fault-tolerant sensor architecture improves reliability
  • Provides standard SPI bus for cost-effective board-to-board communications
  • Includes advanced synchronization and bootloader for field upgradeability
  • Measures only 24 x 37 x 9.5 mm (0.9 x 1.5 x 0.4 in.)
  • Offers high performance of 1.3 deg/hr, 0.08 deg/root-hr and a triple-redundant architecture for ultra-high reliability
  • Triple-redundant sensor architecture consists of three independent, 3-Axis Accelerometer and 3-Axis Gyros
  • Triple-redundant design uses ACEINNA’s proprietary voting scheme to utilize only valid sensor data so that Any defective sensor output or errant dataset will be ignored or de-rated in importance
