MEMSIC VG380 Inertial Module

MEMSIC's VG380 inertial module provides pitch and roll information and is capable of operating over a -40-85 C temperature range.

May 18, 2017
MEMSIC Inc.
Vg380 Lr 591da52360af4

MEMSIC Inc, announces the addition of the VG380 to its portfolio of inertial modules.

  • Provides highly accurate pitch and roll (with respect to gravity), in both static and dynamic conditions
  • Static and dynamic accuracy is specified at +/-0.2 and +/-1.0 degrees (respectively) over -40-85 C (-40-185 F) temperature range

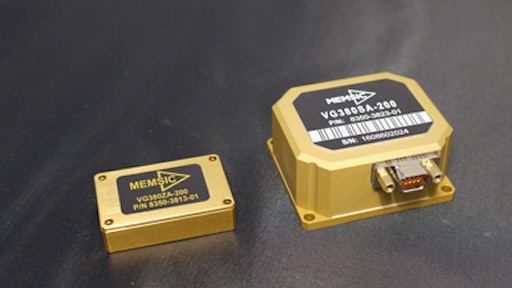

  • Offered in two package/interface options, VG380SA and VG380ZA
  • VG380SA measures 41 x 48 x 22 mm (1.6 x 1.9 x 0.8 in.), is designed for standalone applications, including built-in power conditioning (compatible with power supplies from 9–32V), and with RS-232 / RS-422 interface
  • VG380ZA is designed for OEM/embedded applications, offering smaller 24 x 37 x 9.5 mm (0.9 x 1.4 x 0.3 in.) package, and SPI/UART interface for convenient integration
  • Designed for attitude determination and platform stabilization in applications such as unmanned aerial vehicles, satellite antenna tracking, precision agriculture, surveying instruments, and construction equipment


Request More Information
Fill out the form below to request more information about MEMSIC VG380 Inertial Module
