tecsis Model XLPD Force Sensing Load Pin

tecsis introduces the Model XLPD Force Sensing Load Pin with an accuracy of up to 0.25%.

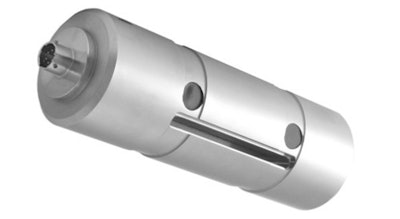

Tecsis Model Xlpd High Accuracy Load Pin 587f9daab236a

The tecsis Model XLPD Force Sensing Load Pin features a patent-pending design which achieves accuracy up to 0.25%.

  • Virtually eliminates loading-induced error
  • Provides high accuracy and repeatability┬á
  • Available in ranges up to 16 T (0-150 kN)
  • Delivers combined ┬▒0.25% linearity and hysteresis, and repeatability of ┬▒0.1% FS
  • Standard output is 2 mV/V with an excitation of 10V DC
  • IP67 rated
  • Features all stainless steel construction
  • Operating temperature range from -65-250 F (-53.9-121.1 C)
  • Includes 150% safe overload rating
