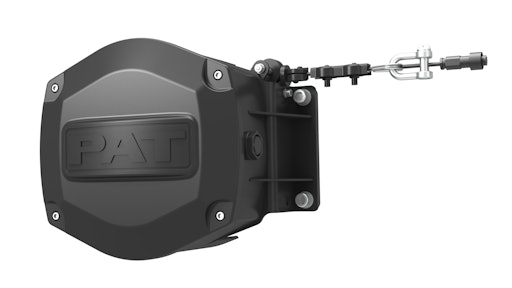

WIKA Mobile Control gSENS LWG610 Cable Reel

The gSENS LWG610 Cable Reel can be used for both angle and length measurement or for length measurement only.

G Sens Lwg610

WIKA Mobile Control introduces its gSENS LWG610 cable reel.

  • Can be used for both angle and length measurement or for length measurement only
  • Provides a typical accuracy of ±0.15 degrees over 360 degrees
  • Features  a compact and robust design
  • Suitable for use on a variety of lifting applications including telehandlers, service trucks, industrial cranes, and reach stackers
  • Large number of configuration options available enables tailoring to specific requirements
  • Configuration options include measuring lengths of 10, 14 or 15 m (32.8, 45.9 or 49.2 ft.)  as well as the choice of either CANopen or 4...20 mA interface
  • Several cable types are also available including steel wire rope, 2-conductor cable for connecting a hoist limit switch, or 3-conductor cable for signal transmission
  • Includes IP65 ingress protection rating for use in harsh operating environments
