WIKA Mobile Control gSENS LWG Length/Angle Sensors

The gSENS LWG length/angle sensors deliver functionally safe signals for length, angle and hoist limit switches.

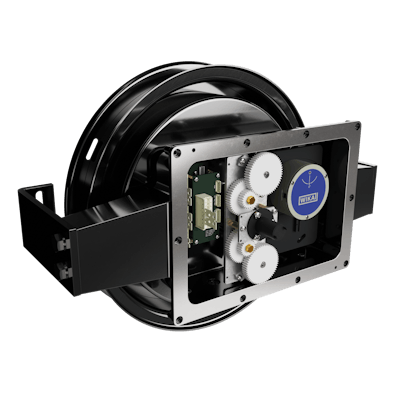

Wika Mobile Control Press Release Product Picture Gsens Lwg Front View Open
WIKA Mobile Control
Wika Mobile Control Logo Unternehmen 2018 01

Redesigned for enhanced integration and reliability, the next-generation of WIKA Mobile Control's gSENS LWG length/angle sensors are flexible and configurable with different cable types and lengths, housings and signal transmission technologies.

  • Compact, robust design suits use in harsh environments
  • Delivers one-to-one electrical and mechanical compatibility with all type 15x, 2xx, 3xx and 5xx gSENS LWG models and the corresponding PAT brand products
  • Modified to greatly speed up on-site installation without altering their mechanical design or electrical connections
  • Makes redesigning machines easier without the need for any design, electrical, mechanical or software-related modifications
  • Features electromagnetic compatibility according to EN 61 000-6-2 standard
  • Supply voltage range from 8-30V DC
  • Redundant slip ring bodies are gold-alloy-plated
  • Easy to service and maintain
  • Self-explanatory circuit board markings make it simple to replace modules
  • Standard connectors are equipped with spring terminals
  • Features EN 13849 performance level PL d/Cat. 3-compliant functional safety and delivers functionally safe signals for length, angle and hoist limit switches
  • Safe switching output is included to directly control the actuators, as well as an improved safety chain achieved by shortening the signal transmission process
