O2M Camera System for Mobile Vehicles

IFM has introduced the O2M camera system for mobile vehicles which can be used as a rear view camera.

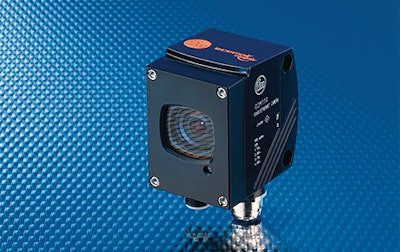

Ifm O2mcamera 11588520

IFM introduces the O2M camera system which can be directly connected to the PDM360 dialog monitors with graphic capability and color display using integrated Ethernet interfaces.

  • Eliminates need for a separate monitor
  • User-friendly parameter setting and control functions from the CoDeSys application library makes image transmission and display adaptable to requirements of mobile vehicle
  • Fully sealed diecast zinc housing to IP69K protection rating enables mounting outside the vehicle
  • Two integrated M12 connectors provide all important connections for supply and communication
  • Can be used as a rear view camera using its selectable image mirror function
  • Can be mounted directly onto mobile vehicle via an adapter system
  • Temperature-controlled window heating defrosts camera in extreme weather conditions
  • Includes CMOS sensor
  • Controller and integrated firmware for image capture and processing allows users to set various parameters individually, such as white adjustment and color saturation
  • Digital capturing and transmission of the image data enable scaling and free positioning of the camera image
  • Splitscreen representation allows up to four camera images to be simultaneously displayed on the PDM360 dialog monitor
  • PDM360 can be used to store individual images on a compact flash card
  • Parameter setting of the camera functions and data transmission are done directly from the PDM360 application programmed with CoDeSys
  • Using function blocks, the displayed camera images can be mirrored, rotated, zoomed and scaled
  • Visualization elements and the camera image can be shown simultaneously
  • Camera image can be shown on any number of displays via a simple Ethernet hub or switch
  • Several O2M cameras can be connected to a display
