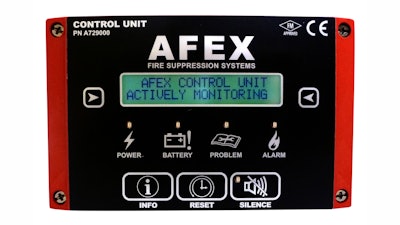

AFEX Fire Suppression System Control Unit

The AFEX Fire Suppression System control unit uses audible and visual signals to alert operators of alarm conditions, and stores the alerts on an internal log for troubleshooting.


The AFEX Control Unit for the AFEX Fire Suppression Systems combines the latest in micro-processor technology with the company’s signature durability, resulting in the ultimate fire suppression system control and performance.

  • Uses audible and visual signals to alert operator to any problem or alarm conditions
  • Alerts are stored on internal log for subsequent troubleshooting and are shown on the LCD display in the local language, meaning they can easily be reviewed directly on the machine itself
  • Enables asset managers to track a fire suppression system’s status alongside other key operating metrics quickly and conveniently
  • Allows end users to monitor for problem, alarm and discharge status
  • Can be configured to discharge when signaled by the vehicle remote control for autonomous vehicle applications
  • FM approved, CE marked, and certified for use in Russia and Australia
  • Compactly designed for console mounting
  • Tightly sealed to protect internal components
  • Battery provides a year of stand-alone power
  • Utilizes customizable harness with standardized connectors for efficient/affordable installations and water-tight connections
  • Supports two distinct detection circuits which allows users to monitor two separate parts of the machine independently
  • Able to support two separate electric actuators, systems may be designed to have secondary discharges when desired
  • No limit to the number of tanks the Control Unit can support
  • Programming of the desired options is simplified with the integrated screen, and push-button actuation is available
