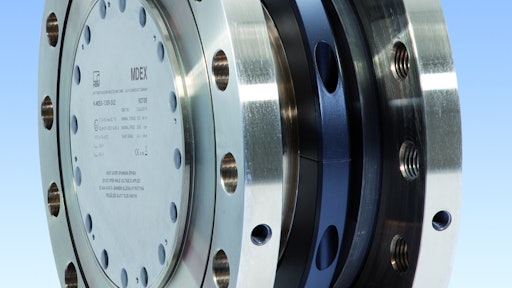

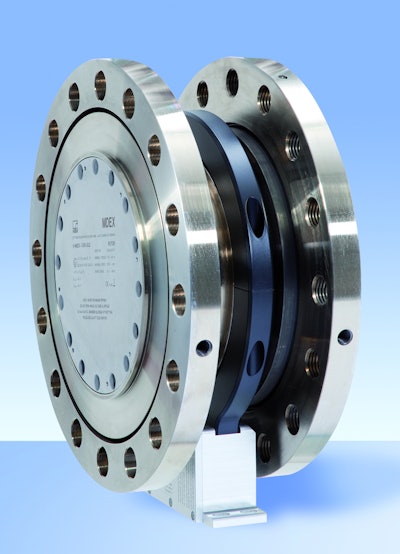

T10FH Torque Transducer

The type T10FH torque transducer from HBM is integrated directly in the drivetrain.

T40fh Atex Cmyk 10224088
Hbm 10056637

The type T10FH torque transducer from HBM is integrated between drive and machine, directly in the drivetrain, and is suitable for precisely determining the performance of a machine.

  • Torque flanges come standard with nominal (rated) torques of up to 300 kNm
  • Able to be use in potentially explosive environments; the electronics have been appropriately modified and adapted
  • Special version available with ATEX approval ll 2G EEx d e q IIC T4 for nominal (rated) measuring ranges up to 150 kNm
  • Transmission between rotor and stator is digital, so secure, error-free measured value acquisition and transmission is possible even under difficult ambient conditions, for example electromagnetic interference or fluctuating temperatures
