SIKO SGH25 Wire-Actuated Encoder

SIKO's SGH25 covers measurement ranges from 0-2.5 m, and withstands individual shocks of up to 100 times the force of gravity.

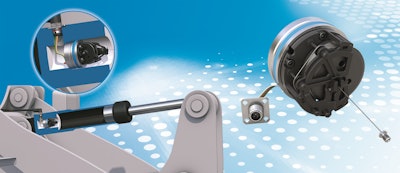

Sgh25 Applikation 2
Siko 591ddf9bc6627

The SGH25 wire-actuated encoder from SIKO is characterized by a measurement range up to 2.5 m (8.2 ft.) and an extremely long service life.

  • Wire-based position sensor
  • Variety of interfaces meets high requirements, even in applications that are critical for safety
  • Suitable for applications in mobile machines such as dumper trucks, excavators and agricultural machinery
  • Measures position of hydraulic and telescopic cylinders and communicates it to machine control system via integrated communication protocols
  • Can be integrated directly into hydraulic cylinders
  • Newly developed plastic provides strong design and extends fluid temperature range from 85 C (185 F)  previously to 105 C (221 F)
  • Tested to toughest vibration standards
  • Withstands individual shocks of up to 100 times the force of gravity
  • Flexible cable cushions hardest impacts
  • Hydraulic medium also dampens any vibrations that come about
  • Integrated teach-in function enables measurement length of sensor to  be set individually
  • Features KV1H plug connection, offering protection rating of IP69K
  • Available with analog interfaces and CANopen or SAE J1939 protocols for transmitting data
  • Redundant versions with CAT3, performance level D -PLd meet the highest requirements for safety-critical applications in accordance with EN13849
  • Cable-based design makes hollow boring of piston superfluous, offering cost savings
  • Can also be installed in telescopic cylinders
