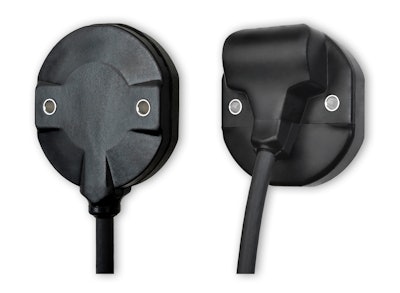

Sensata ACW4 Single Turn and TCW4 Multi Turn Absolute Hall Effect Sensors

The ACW4 and TCW4 sensors feature over-molded, two-part modular construction that provides durability and design flexibility.

Sensata Acw4 Tcw4 Hall Effect Sensors
Sensata 10915639

Sensata Technologies announces the availability of the ACW4 Single Turn and TCW4 Multi Turn Absolute Hall Effect Sensors.

  • Features over-molded, two-part modular construction that provides exceptional design flexibility
  • Sensing electronics are encased in thermoplastic polyamide shell while separate activating magnet is external to sensor assembly
  • Modular architecture results in compact package of only 50 mm (2 in.) in diameter by a maximum 24 mm (0.9 in.) thick, allowing easy incorporation into both new and existing systems
  • Over-molded housing completely encapsulates electronics and seals cable entry from exposure to the elements
  • IP67 rated
  • Suited for robotic, industrial, manufacturing and material handling applications where dusty or wet conditions are common
  • Variety of engineered magnet holder accessories available that developers can use instead of designing and testing their own
  • Variety of output types are available to ensure sensors can interface with common controllers
  • No moving parts in contact with each other, eliminating any potential wear or misalignment
