HDMag Flexible Magnetic Belt Encoders

Baumer introduces its HDMag flexible magnetic belt encoders are available for shaft diameters from 11.8 in. to over 9.8 ft.

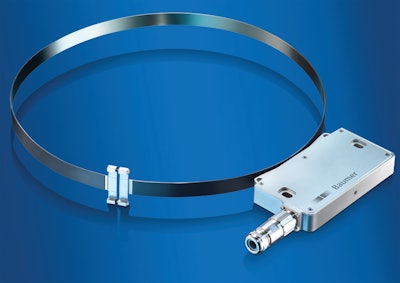

Baumer Hdmagflexiblemagneticbe 11213509

HDMag flex magnetic belt encoders from Baumer allow great flexibility in mounting and accurate measuring under harsh conditions on large shafts such as those in torque motors, generators, large drive units, azipod drive units (PODs), hoists and cranes.

  • Available for shaft diameters from 300 mm (11.8 in.) to more than 3 m (9.8 ft.)
  • Flexible magnetic belt can be buckled around shaft using only two included screws by a single operator in mere minutes for easy installation on machinery, including existing machinery without the need to remove any parts
  • Non-contact, magnetic sensing principle ensures maximum resistance to shock, vibration, dust, dirt, liquids and condensation
  • Available either as incremental with HTL, TTL/RS422, or 1 Vpp SinCos outputs and up to 13,1072 lines per revolution, or as quasi-absolute with SSI data and additional incremental output signals
  • Features IP67 protection, 30 g vibration and 300 g shock ratings
  • Suitable for harsh applications and in operating temperatures from -40 to 185 F
  • Provides operational speed rating up to 1,850 rpm
