AHE Series Steering Encoder Units

The SKF AHE Series steering encoder units feature by-wire technology to provide programmable steering functionality and reduced maintenance.

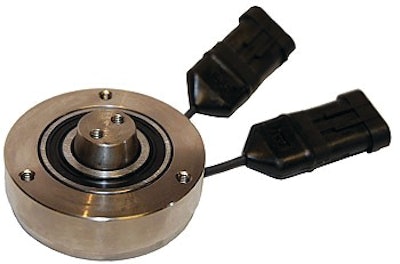

Skf Aheseriessteeringunit 11417833

AHE Series steering encoder units from SKF feature by-wire technology which can improve vehicle efficiency and performance when used in place of mechanical or hydraulic systems.

  • Based on proven sensor-bearing technology
  • By-wire technology provides programmable steering functionality and zero maintenance, requiring no adjustment or relubrication during expected lifespan
  • Absence of hydraulic hoses and compactness of unit may lead to ergonomic design improvements and easier assembly which can lead to higher productivity and profitability
  • Consists of stainless steel stub shaft to mount steering wheel
  • Includes two non-contact rotary incremental position sensors and an SKF roller bearing
  • Friction mechanism provides constant steering friction
  • Housing features compact and robust design
  • Available in standard resolution with maximum 256 increments per turn of the steering wheel, or high resolution offering 1,024 increments per turn of the steering wheel
  • Well suited for use in forklift trucks, as well as other heavy-duty applications including construction, mining and agriculture
