BEI Sensors LP Series Heavy-Duty Rotary Encoders

The LP Series of heavy-duty rotary encoders from BEI Sensors feature encapsulated electronics to protect against humidity, shock and vibration.

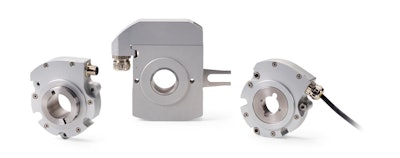

LP Series Encoders 5654c8e3f3dd1
Bei Sensors Logo Highres 10719595

BEI Sensors announces the launch of the LP Series of heavy-duty rotary encoders that provide reliable and precise motion control feedback in a compact, low profile encoder package for harsh applications.

  • Uses innovative sensing technology that allows for accurate position and speed sensing
  • Withstands extreme temperatures, shock and vibration, and wet and dirty environments
  • Three distinct encoder types are available in incremental or absolute single turn outputs - a compact version with cable or connector terminations, a terminal box option and an explosion proof model
  • Each version provides rugged and reliable motion control solution for a wide range of harsh applications in material handling, wind turbine, off-highway vehicle, and oil and gas industries
  • Heavy-duty design provides ingress protection rating of IP66 and protects internal components from exposure to the elements, making these encoders durable and well suited for dirty and dusty outdoor applications
  • Encapsulated electronics protect against humidity, make it vibration resistant up to 200 m/s2 (55 to 2,000 Hz) and shock resistant up to 3000 m/s2 (5ms half-sine), and enables operation in extreme temperatures from -40 to 100 C
  • Standard aluminum anodized housing resists corrosion and ensures long operational life
  • Terminal box option simplifies installation and allows pre-wiring, preventing wiring errors
  • Termination style also comes standard with enhanced electronics providing overvoltage protection which prevents failure and saves automated systems from costly downtime
  • Advanced electronic design with terminal blocks contain especially robust output drivers that allow for the use of long cable runs with no loss of signal
  • Captive screws are standard to simplify installation and prevent loss of screws while mounting in tight, hard-to-reach places
  • Low profile design makes for easy installation into space-restricted applications where available shaft space is limited
  • Programmable option enables user to select any resolution from 1 to 10,000 PPR, adding to versatility in wide variety of applications
  • Variety of mechanical configurations available including shafted, through shaft, blind shaft or shaft with integrated coupling to suit particular applications
