Endevco Model 7268C

Meggitt offers the Endevco Model 7268C miniature triaxial piezoresistive accelerometer.

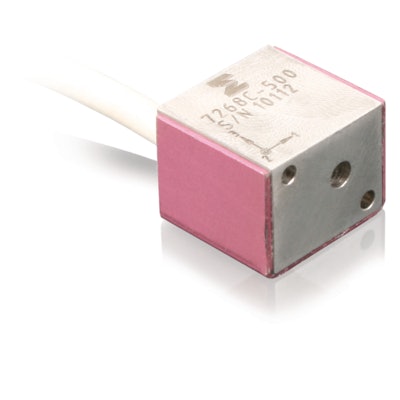

Endevco C 10114287

Meggitt Sensing Systems offers the Endevco Model 7268C, a miniature triaxial piezoresistive accelerometer for high-reliability measurement of short duration shock across three axes and in three orthogonal directions.

  • Package measures 12.7 x 10.7 x 13.7 mm (0.5 x 0.42 x 0.54 in.), t
  • Offered in ranges of 500g, rugged to 5,000g shock with 17k Hz resonant frequency; and 2,000g, rugged to 10,000 g shock with 26k Hz resonant frequency
  • Frequency response is 0 to 3000 Hz on the Z-axis, 0 to 1500 Hz on the X and Y axes
  • Incorporates integral mechanical stops for added ruggedness and over-range protection
  • Supplied with integral cable and customer capability to select both excitation voltage and cable length
  • For use in vehicle crash testing, general shock monitoring, or any other general short duration shock testing application within specified measurement ranges
