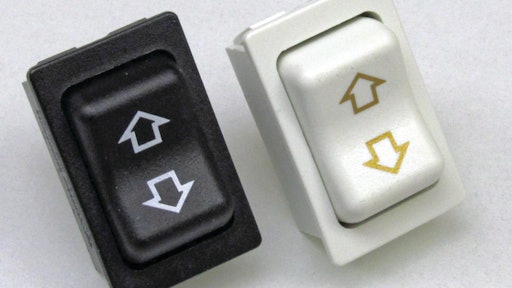

GRS-6024 Series Full Sized Momentary Rocker Switch

CW Industries has released a 40 amp full sized momentary rocker switch for use in applications that require polarity reversing.

6000series 10442823

CW Industries has developed a Momentary Action Full Size Reversing Rocker Switch, the GRS – 6024 series, that is available in DPDT Center-Off construction.

  • Rated at 40 amps 12V DC
  • Features self cleaning contacts
  • RoHS compliant
  • Works well for heavy-duty motor reversing applications or applications that require polarity reversing
  • Made of heavy-duty nylon with copper alloy terminals
  • Male .250 in. wide quick connect terminal provides easy installation
  • Mounts securely in a 1.58 in. x .948 in. panel opening requiring no screws or other fasteners
  • Standard colors are black, beige and white but can also be molded in a wide range of colors and special markings to suit specific requirements
