Intempco M4 Series Temperature Transducer for Mobile Hydraulic Systems

Intempco’s M4 Series temperature transducers are capable of withstanding the extreme pressures and demanding temperature gradients typically found in off-highway mobile hydraulic applications.

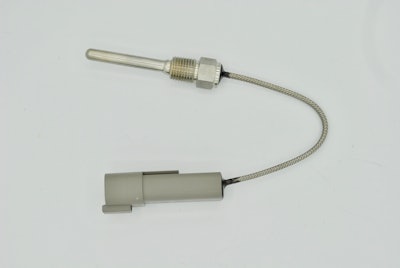

M4 A Bent

Intempco has launched the M4 Series temperature transducer designed specifically for the harsh conditions of mobile hydraulic applications.

  • Provides wide temperature range spanning from -76-1,832 F (-200-1,000 C)
  • Available with Deutsch DT04 or M12 connector, both options with a built-in transmitter
  • Withstands extreme pressures and demanding temperature gradients typically found in harsh mobile hydraulic applications such as agriculture, forestry, mining, material handling and construction vehicles
  • Features potted electronics
  • Complies with IP67 rating for protection from moisture and dust
  • Probe is manufactured from either Stainless Steel 316 or Inconel as both materials provide resistance to oxidation in extreme temperatures
  • Factory calibrated to meet users’ specifications
  • Uses thermocouple type K temperature sensor with signal conditioning electronics
  • Available with high accuracy 0.25-4.75 voltage output or 4-20mA current output, allowing for consistent and repeatable performance
