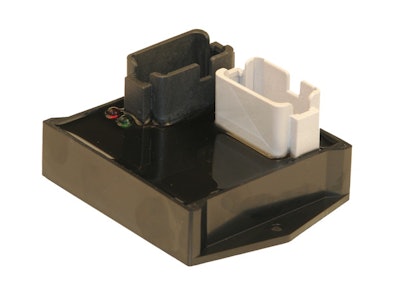

Trombetta J1939 Temp Sensor Module

The J1939 temperature sensor module from Trombetta allows up to four modules to be addressed by a common CAN backbone.

Trombetta TR16204 571e6fbf3ba5c
Trombetta Logo 2011 Blk PMS1795 571e679ea424f

Trombetta's J1939 Temp Sensor Module converts up to six RTD inputs into hexadecimal values and transmits them to the J1939 CANbus.

  • External wire connections allow for up to four Temp Sensor Modules to be addressed on a common CAN backbone to accommodate up to 24 RTD inputs
  • Features -40-210 C (-40-410 F) sensing range and 1 C resolution
  • Provides 12 or 24V operation
  • Includes open and short circuit detection
  • Meets MIL-STD-461F for EMI
  • Potted protection and IP67 rating enables use in harsh operating environments
  • Customizable
  • Operating temperature range is -40-85 C (-40-185 F)
  • Operating voltage is 8-32V DC
