TTM Sensors

TURCK has added dynamic programmability and other special features via IO-Link to its TTM sensor line.

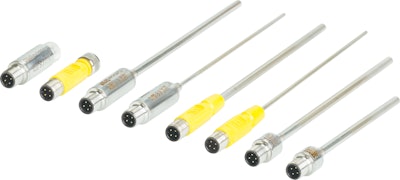

TURCK TTMtemperaturesensors 548a26a17f894

To broaden the functionality of its temperature transmitters, TURCK expanded its TTM sensor line to include dynamic programmability and special features via IO-Link.

  • Allows user to program temperature range required, rather than be constrained to specific ranges, for more specific temperature control
  • Enables programmability and use as a temperature switch
  • Available models include remote-mount transmitters, transmitters with integral Class A resistance temperature detectors, as well as all stainless steel configurations to meet different measurement, space and material needs of applications
  • Factory assembled with an overmolded or welded housing to eliminate problems associated with conventional transmitter assemblies
  • Comes ready for installation
  • Ready to plug in and play right out of the box, with no terminal screws or wiring assembly needed
  • Overmolded remote transmitters are ideal for applications with limited clearance because they ensure electronics stay out of harm’s way
  • Remote versions can also be mounted separately from the RTD for improved temperature readings by isolating transmitter circuitry from temperature being measured
  • Stainless version offers a more robust package without an overmolded housing, ideal for food and beverage applications
  • Features 4-20 mA temperature transmitter
  • Pre-scaled 0 to 150 degrees C but can easily be programmed to specific temperatures within those ranges with IO-Link
