Loadmaster a100 On-Board Weighing System

RDS Technology launches the Loadmaster a100 on-board weighing system, a CAN-based system combining sensor technology and signal processing techniques providing precise and consistent weight information.

• Designed to compensate for uneven, sloped ground and restricted loading areas

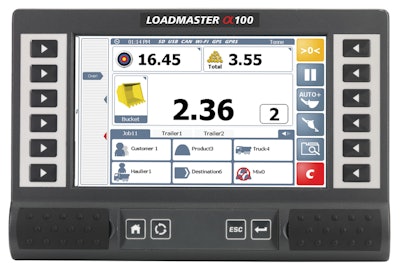

• Uses a 7 in. color, resistive touch screen display and additional physical keys
• Suitable for use with up to 10 different attachments e.g. buckets or forks
• Can be retrofitted onto wheeled, telescopic and tractor-type loaders
• Continually measures hydraulic pressure using up to four sensors
• Pressure signals are captured and filtered through a weighing ‘arc’ provided by inclination sensors measuring the angle of the main boom
• An additional sensor compensates for oil temperature
• All signals are processed and calculated in the RDS Smart Box and sent to the terminal mounted in the cabin
• SQL database capability with up to eight reference fields including 200 products, 2000 customers, 1000 locations, hauliers, trucks and destinations and up to 20 drivers
• Video input for switching head unit into reversing camera mode removes the need for additional screen
